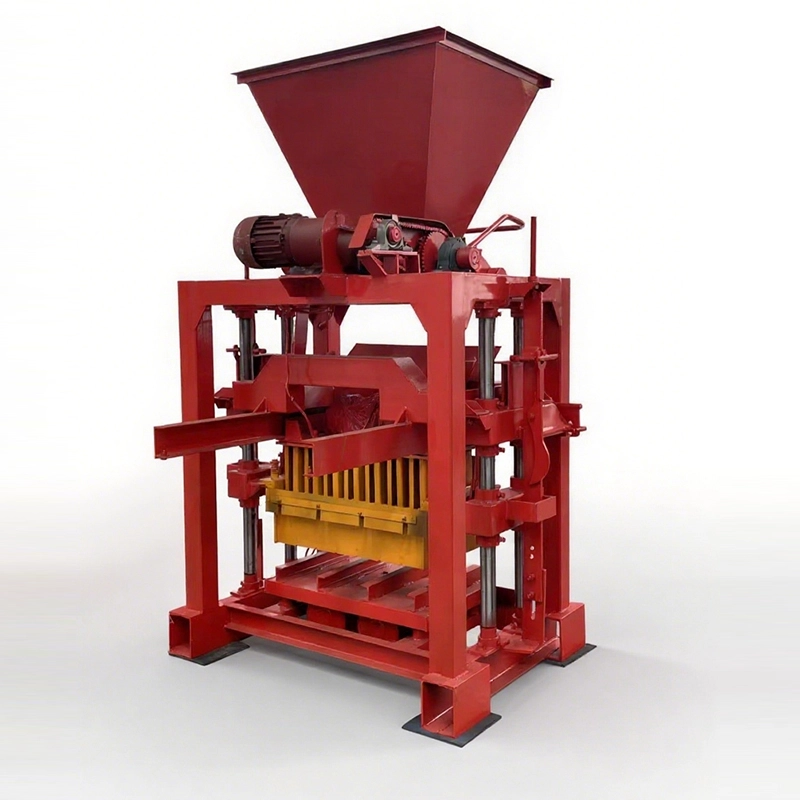

1. Economical Entry‑level Block Machine for Small‑scale Brick Workshops

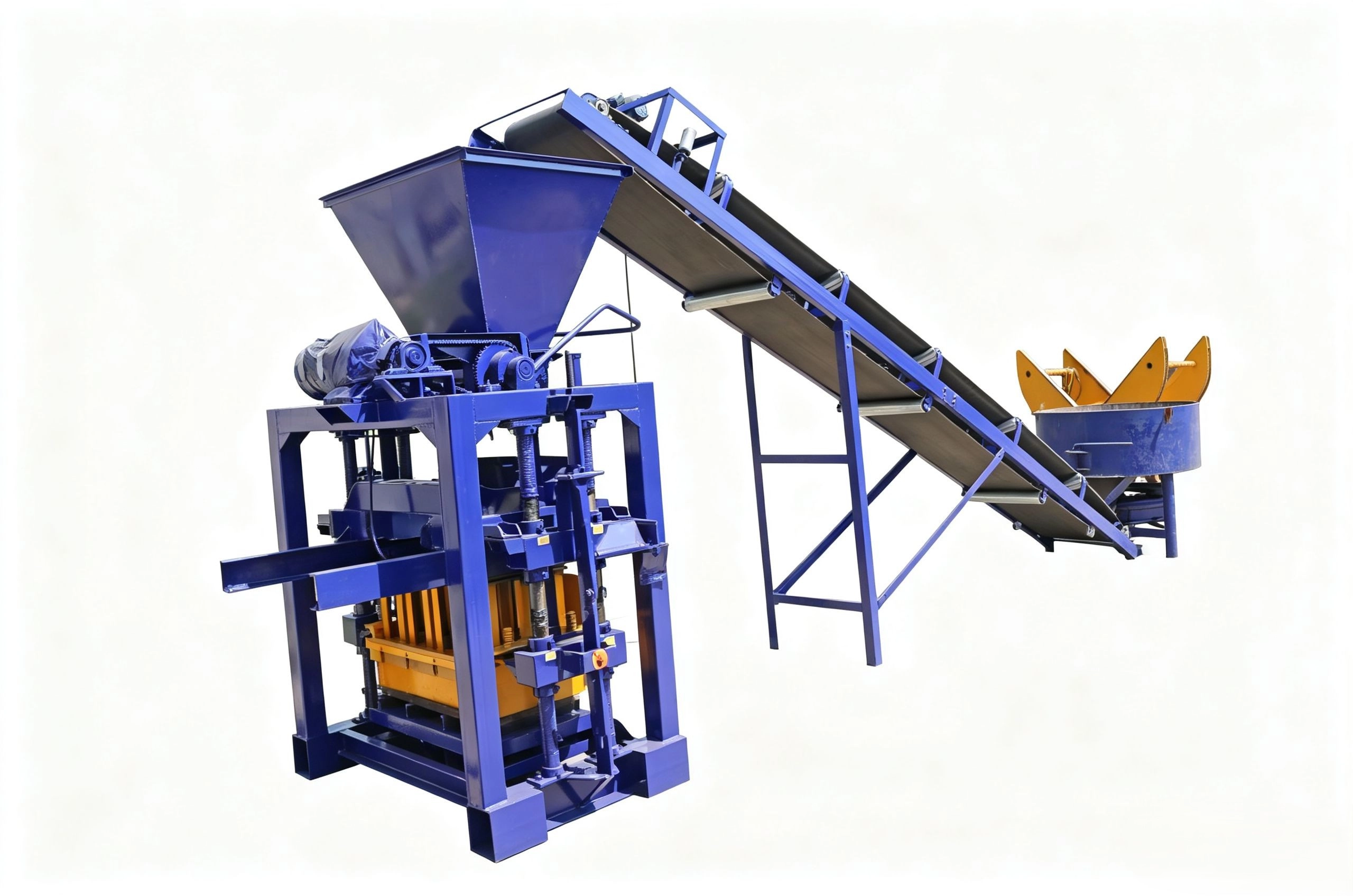

The QTJ4‑35B2 semi‑automatic concrete block machine is a cost‑effective compact block‑forming solution specially oriented toward rural mini workshops and startup investors with limited budgets. Thanks to its streamlined mechanical architecture, the equipment requires comparatively low upfront capital outlay. It supports two practical production modes: standalone host operation for low‑volume trial manufacturing, or integrated configuration together with mixers and belt conveyors to build a complete simple block production line according to actual business needs. Without redundant complicated components, this unit keeps overall failure risks under control, making it one of the most popular beginner‑oriented concrete block machines on the market for individual entrepreneurs and small family‑run brick yards.
2 High‑performance Dual‑vibration System for Dense, High‑quality Finished Bricks
Equipped with an integrated upper‑and‑lower composite vibration assembly including two bottom vibrators plus an independent top vibration head, the QTJ4‑35B2 reaches a total exciting force of 40KN under a stable vibration frequency of 2800 rpm to realize synchronous material compaction inside the mould cavity. This synchronous compound vibration effectively avoids common quality defects widely seen on low‑end block machines such as loose interiors, material delamination and surface cracking. Operators can fine‑tune vibration intensity adapting to raw materials with different moisture contents, ensuring finished blocks feature smooth surfaces, uniform dimension and improved compression strength. Compared with ordinary simple block equipment on the market, this dual‑vibration design delivers higher block density, stable continuous running performance and lowers reject rate during mass production, helping small brick factories reduce raw‑material waste and guarantee product acceptance for local construction projects.
3 Broad Raw‑material Compatibility & Waste‑recycling Production Advantage
The QTJ4‑35B2 semi‑automatic concrete block machine demonstrates remarkable adaptability for diversified raw materials. Conventional river sand, crushed stone, stone dust, fly ash, brick scrap, shale and ceramsite can all serve as qualified production feedstock. Local industrial waste residues can replace a large portion of cement and high‑priced natural aggregates, which greatly cuts raw‑material procurement costs for rural brick plants. Different from some delicate block devices vulnerable to granular impurities, this machine adopts robust simplified mechanical structures with no easily‑clogged filter parts, so it can handle gravel‑containing waste materials for long‑time non‑stop operation reliably. Besides bringing better profit margins by making full use of locally available resources, its waste‑recycling production mode also simplifies environmental‑related compliance work for small‑scale manufacturers.

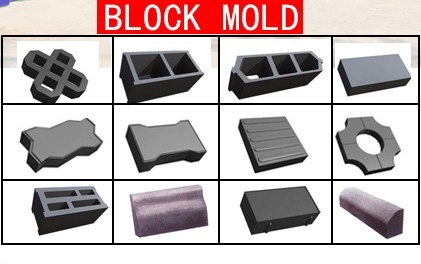

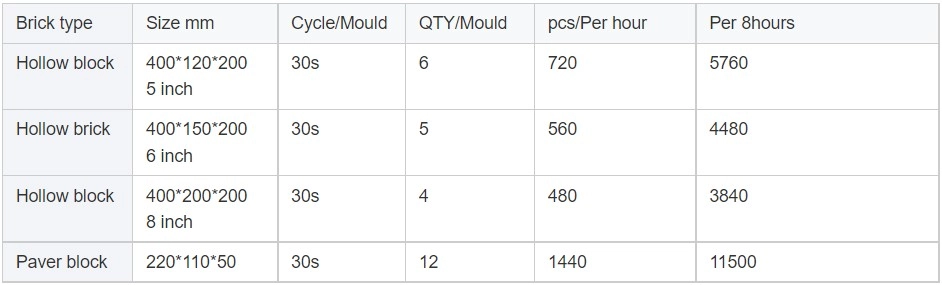

4 Flexible Production Capacity & Custom‑mould Solution to Cover Diverse Order Demands
Boasting a fixed 35‑second molding cycle, the QTJ4‑35B2 maintains steady daily output at 2,200‑2,700 pieces, which perfectly matches the daily delivery requirement of family‑size brick yards and prevents equipment idling caused by excessive capacity. Standard moulds support multiple block sizes within one molding cycle, while custom non‑standard manganese‑steel moulds are available to produce special‑dimension blocks for local construction specifications. Operators can switch over mould sets conveniently to manufacture wall hollow blocks, solid bricks, paving bricks and slope‑protection blocks with one single host. There is no need for small workshops to purchase multiple separate block machines for different product lines. Whether customers run standalone manual production or expand into supporting assembly‑line configuration, the equipment can adjust to site conditions and order volume, maximizing investment value for mini brick factories with limited space.

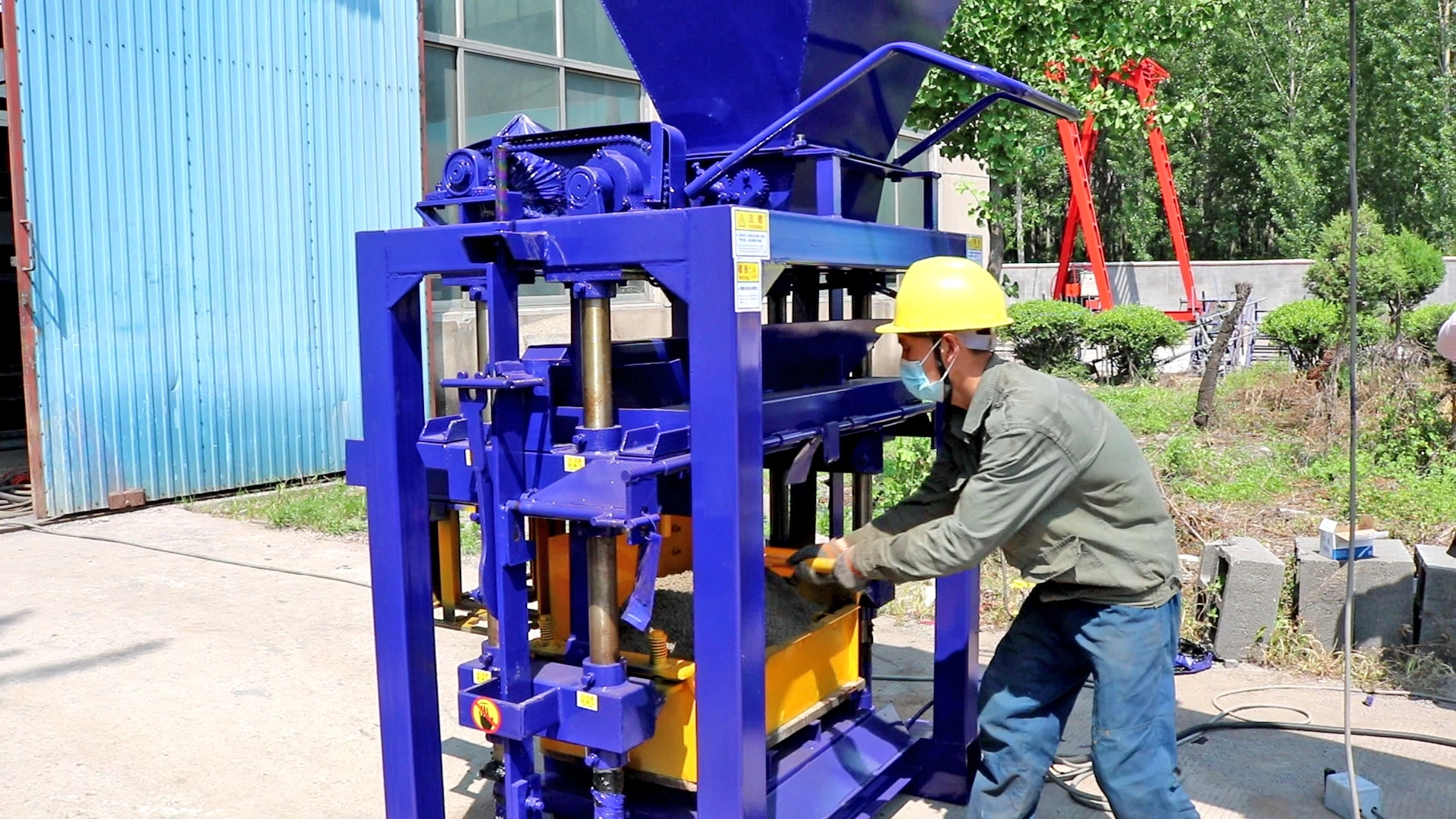

5 Compact Layout, Easy Installation & User‑friendly Manual Operation
Measuring only 1500×1660×2460 mm in overall dimension, the QTJ4‑35B2 features compact footprint and split‑disassembly lightweight structure. It can be deployed inside simple rural sheds without heavy‑duty reinforced workshop foundation; mixers and conveyors may be arranged at a 90‑degree side angle for flexible site layout, greatly lowering factory‑building investment and inland logistics cost for cross‑border small orders. Installation work only requires ground leveling, wiring and simple commissioning. The whole machine adopts manual‑switch control instead of complex PLC programming system. Its intuitive operation panel enables new workers without professional background to grasp the complete production workflow after short‑period training. An upper‑mould self‑lock safety mechanism is built‑in to prevent accidental mould falling during lifting and minimize human‑caused malfunctions. With low learning threshold and moderate maintenance requirement, this machine is highly suitable for new entrepreneurs stepping into block‑making business.
